CROWN DIE-CUTTING TOOLS

- Official North American Stamfag Provider

- Free Sample Grinds and Sharpening

- Free Consultation

Depend on Us for Crown Die-Cutting Tools

All stated quantities, in million labels per re-sharpening, are empirical values and can only be achieved with printed and coated wet glue label papers! The tool crowns are 20 to 25mm high and can be re-sharpened up to 20 times, without measurement changes.

Contact the team at Stamfag USA for more information!

Crown Die-Cutting Tools


S5

Steel crown

for up to 5 million labels

S10

High alloy steel crown

for up to 10 million labels

STAMDUR

Tungsten carbide crown

for up to 10 million labels

Full-Steel-Die Cutting-Tools


VS1

Solid steel die

for up to 5 million labels

VS10

Solid steel die

for up to 5 million labels

Stainless Steel INOX

Solid steel die for special applications (e.g. Medical technology)

Product Data Sheet

  • The above specified performances can only be achieved with professionally sharpened punching tools.

  • Tool crowns are dimensionally accurate replaceable and the aluminum base is reusable. This saves significant costs!

  • A worn crown can be replaced by higher crown quality! This means; an S5 crown can be replaced with an S10 or even Stamdur crown.

  • Punching tools can be equipped with several height-adjustable slitter knives and additional slitter knife positions.

  • Equipped with an additional tool frame and tool plates, the tools can be used on all die-cutting machines!

Tool Quality Comparison Diagram

Reduce cost, dramatically! Find out in a simple way which punching tool quality is most cost-effective for your production by entering the number of labels numerically or moving the slider below the diagram.

This diagram allows you now to compare purchase-, change over-, sharpening- and crown replacement costs of the most commonly used high- and counter pressure dies of the Stamfag S5, S10 and Stamdur qualities.

Shipping costs for re-sharpening and any additional incurred in-house costs are not included in the diagram!

The cost comparison chart ranges up from 1- 600 (million labels). The reference punching knife has a circumference of 280mm and is equipped with two slitter knives, see picture.

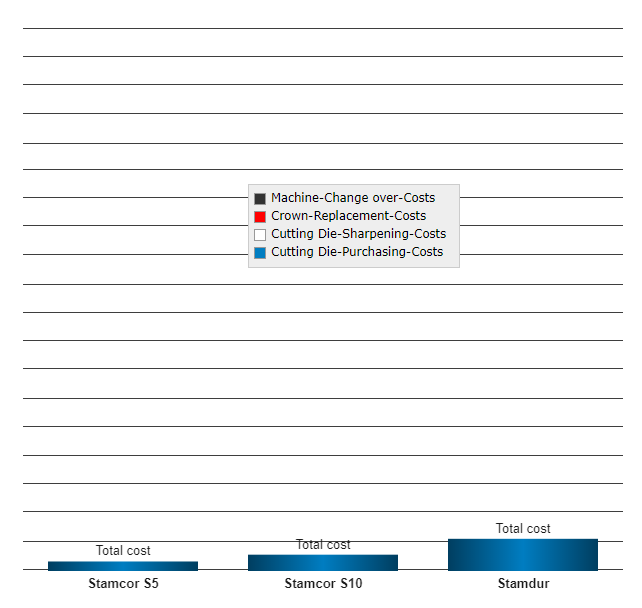

Bar chart comparing costs for Stamcor S5, Stamcor S10, and Stamdur, including machine change, crown replacement, cutting die sharpening, and cutting die purchasing costs.

1 Million

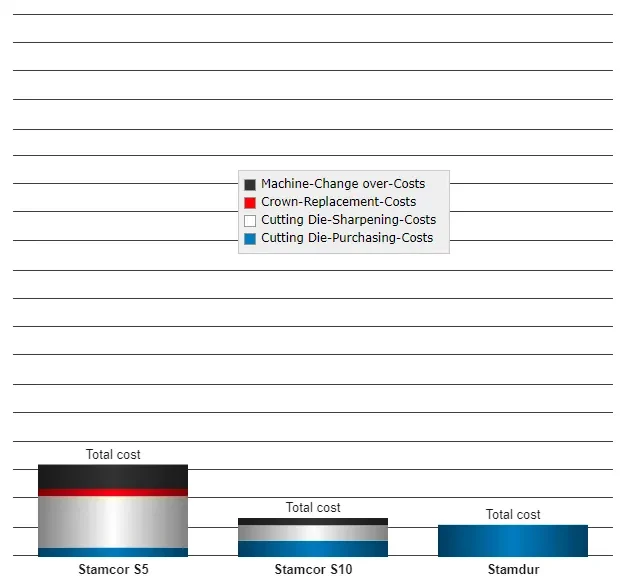

A bar graph comparing the total costs of three products: Stamcor S5, Stamcor S10, and Stamdur. Each bar shows costs broken down into four categories: machine-change over-costs (black), crown-replacement-costs (red), cutting die-sharpening-costs (gray), and cutting die-purchasing-costs (blue). Stamcor S5 has the highest total cost, followed by Stamcor S10, then Stamdur.

100 Million

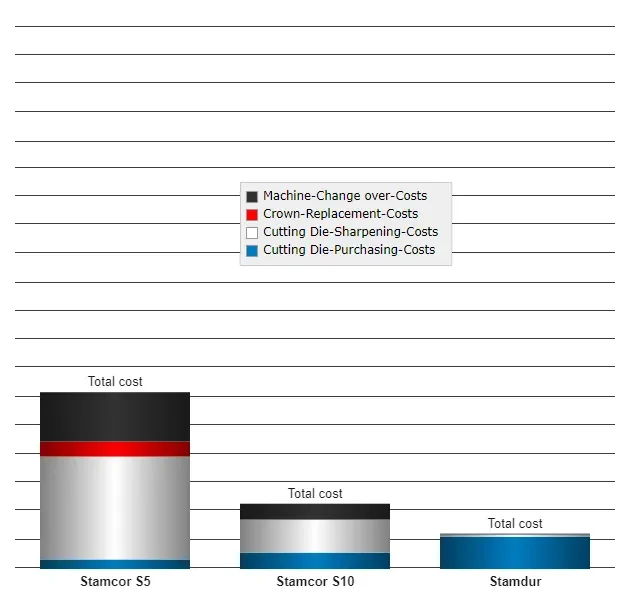

Bar chart comparing total costs of three products: Stamcor S5, Stamcor S10, and Stamdur. The chart segments include machine change over-costs, crown replacement costs, cutting die sharpening costs, and cutting die purchasing costs, with Stamcor S5 having the highest total cost, followed by Stamcor S10, and Stamdur having the lowest.

200 Million

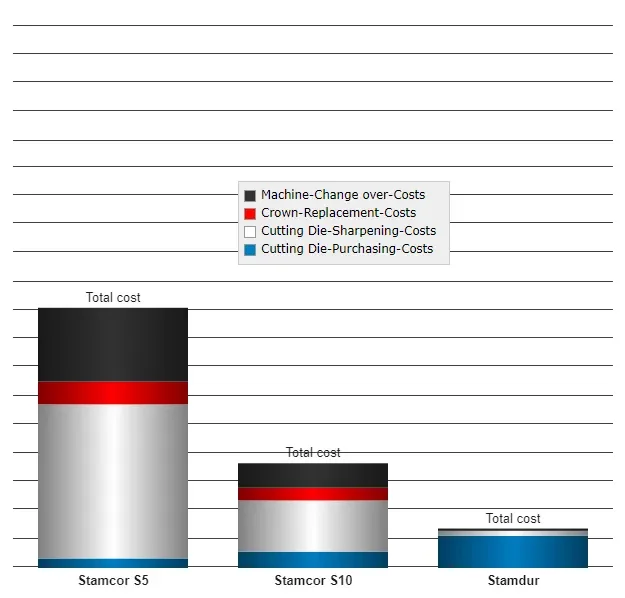

A bar chart comparing costs for three different stamping dies: Stamcor S5, Stamcor S10, and Stamdur. Each bar shows total costs divided into machine change over-costs, crown-replacement costs, cutting die-sharpening costs, and cutting die-purchasing costs, with distinct colors for each cost type.

300 Million

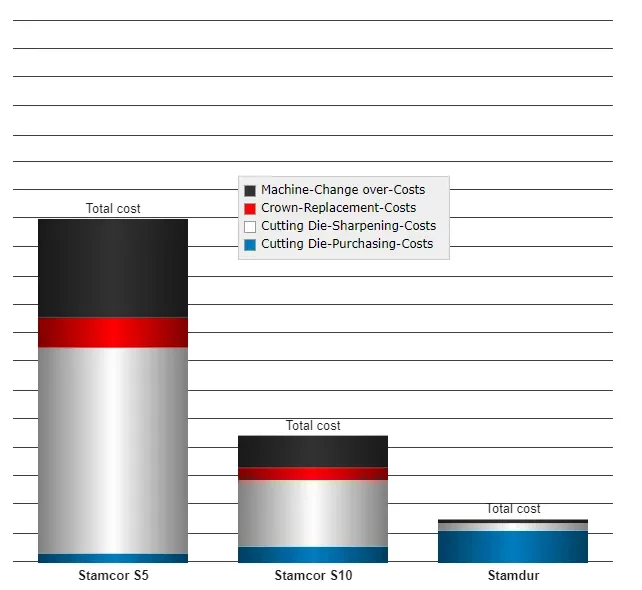

Bar chart comparing total costs of three different products: Stamcor S5, Stamcor S10, and Stamdur. Each bar is divided into segments representing costs for Machine-Change over-Costs, Crown-Replacement Costs, Cutting Die-Sharpening Costs, and Cutting Die-Purchasing Costs.

400 Million

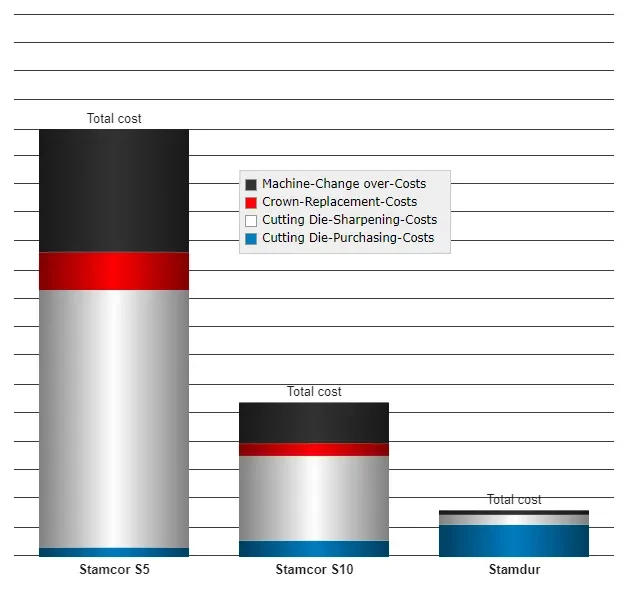

Bar chart comparing total costs of three manufacturing processes: Stampcor S5, Stampcor S10, and Stamdur, with cost components represented by different colors.

500 Million

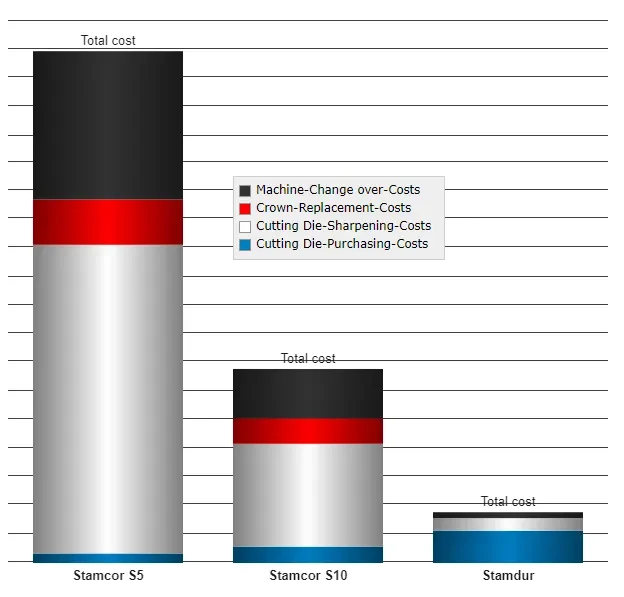

Bar chart comparing total costs of different stamping machines. The chart has three bars labeled Stamcor S5, Stamcor S10, and Stamcor, showing the total costs with various components. Components include machine change over-costs, crown replacement costs, and cutting die-sharpening and purchasing costs, with a legend indicating color coding.

600 Million

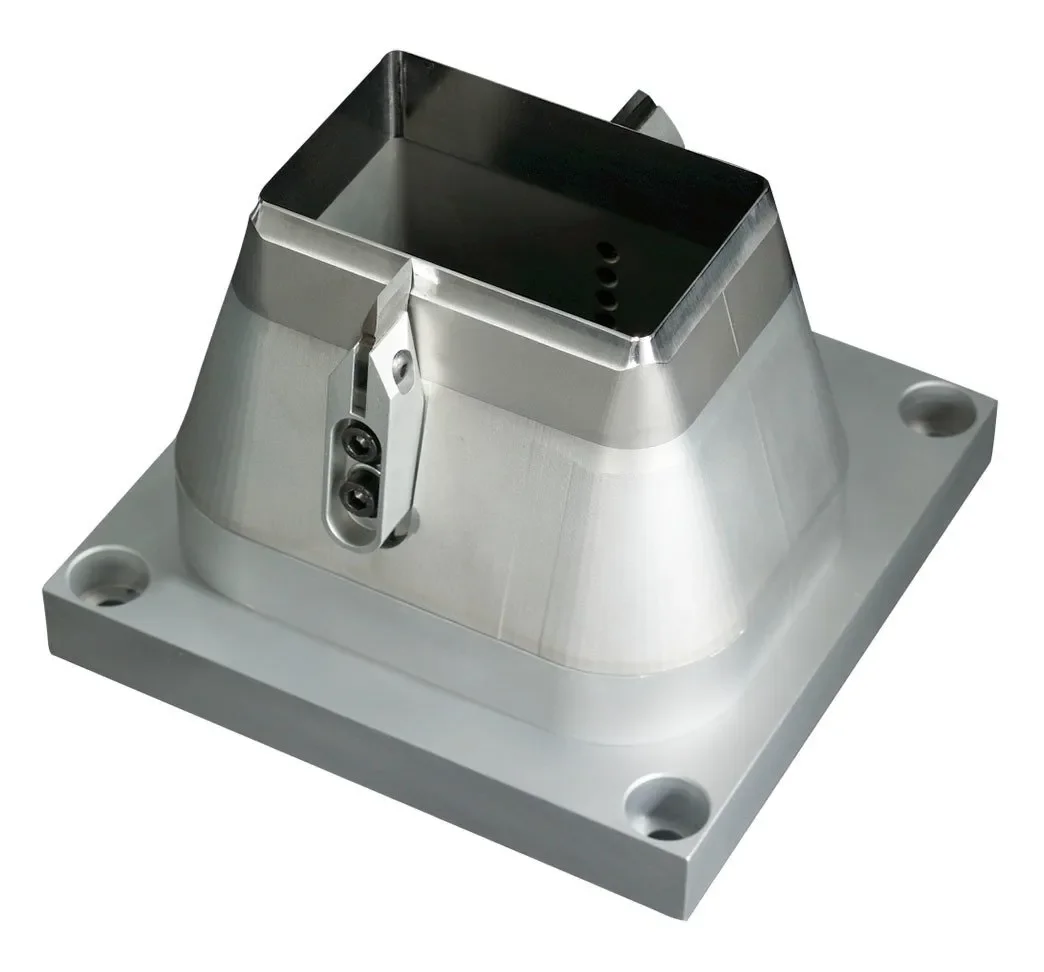

Metallic industrial component or mold with a square top and four mounting holes on a flat base.

The reference die used in computing this comparison is based on a circumference of 280mm and equipped with two waste slitters. The calculated data are empirical values based on experience with printed and varnished wet strength label paper.
