Top-Quality Punching Tools
Thanks to our longstanding experience, Stamfag USA is able to provide competent advice in all matters relating to punch through and counter-pressure die-cutting.
What is important is the right choice of tool quality: The higher the number of products, the greater the demands on the tool. High-quality punching tools may cost more to purchase, but they work out significantly cheaper when it comes to long runs.
With higher quality tools requiring less re-sharpening and replacing of crowns or complete dies, machine downtimes are substantially reduced especially on automatic punching machines.
Contact
us
today for more information! Stamfag USA is the official North American provider of Stamfag products and tools.

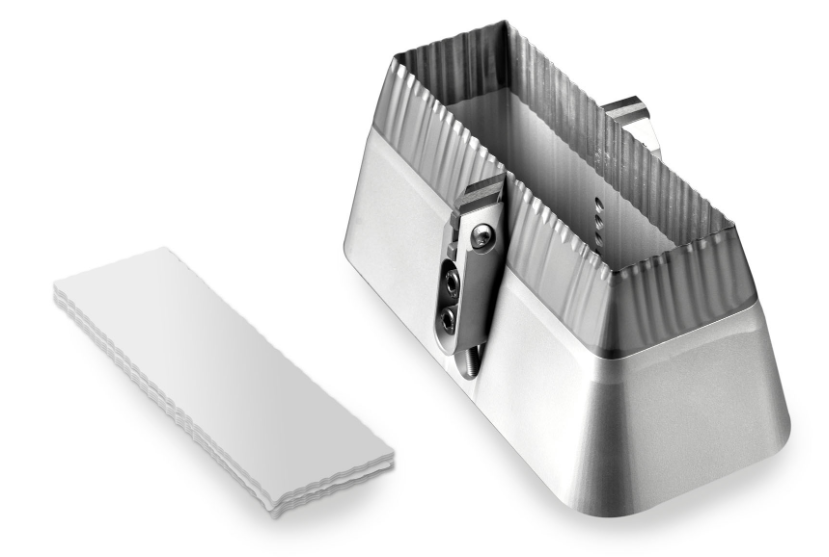

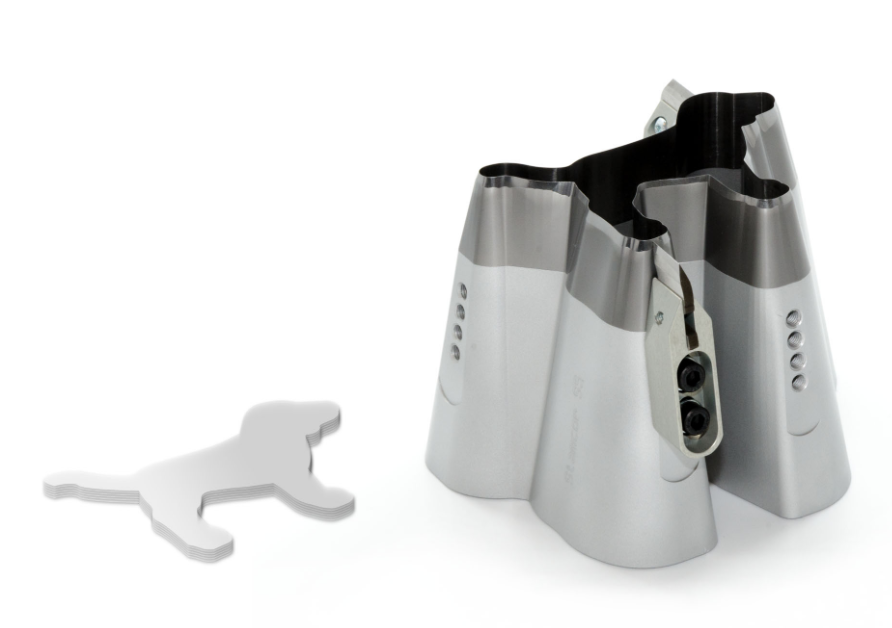

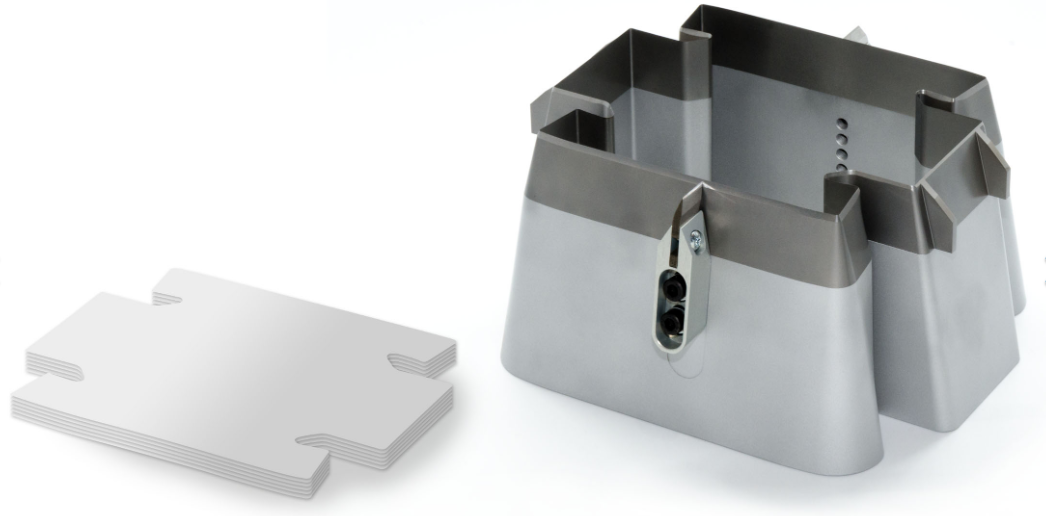

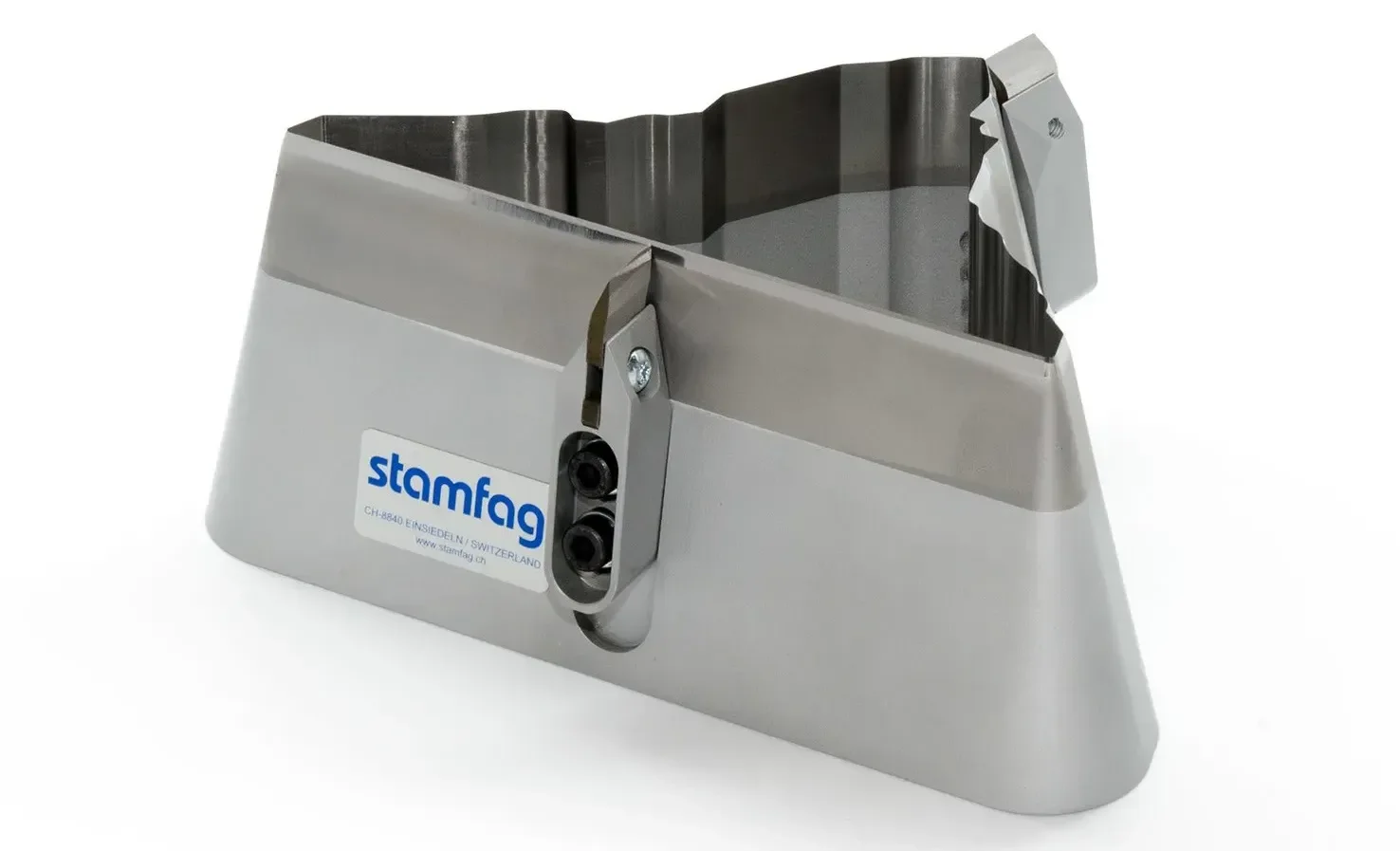

Stamfag’s Crown Die-Cutter – The Original
Around 25 years ago, Stamfag came up with a new generation of revolutionary, easy-to-service crown die-cutters. Consisting of an aluminum body and a steel or carbide cutting crown, these high-performance Swiss precision tools are used all over the world. Experts still refer to our crown die-cutter as “the Original”.
Structure
The crown die-cutting tool is composed of an aluminum body. The crown, which is made from tempered tool steel or tungsten carbide, is glued according to a special process. Adjustable waste cutters - slitter knives - are screwed to the aluminum body. Both the slitters and their holders can be reused when the crown needs to be replaced.
Replacement of Crowns
Stamfag crown tools can be re-sharpened up to 20 times. Only then will the crown be replaced and the aluminum base reused. The punching knife is new. The serial number remains the same and refers to the original production data of the tool.
An enormous advantage of the crown tools is that, if necessary,
a worn crown can be replaced with a higher value crown! Compare material performance at Crown Die-Cutting-Tools.
Composite Material as Hard as Gemstones
Higher-quality crown material means that the crown needs to be re-sharpened less frequently and can be used for longer periods. For very large runs, we recommend die-crowns made from tungsten carbide, a composite material with a very high hardness degree and the performs will be several times more than tool steel.

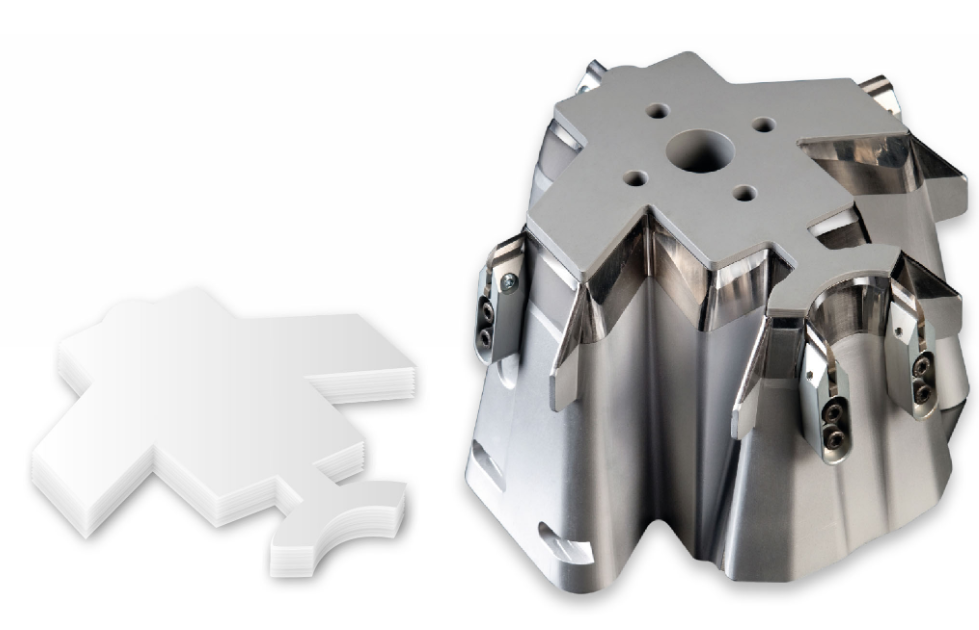

Full-Steel Punching Tools
Today, the packaging industry increasingly relies on composite, multi-layer and reusable materials that require suitable dies for punching. For challenging shapes, aside from crown die-cutters, we also engineer and manufacture punching tools from tempered full steel - classic, stable and precision tools that have regained importance in recent years.
Cutting Geometry Is Crucial
Given the customized design of Stamfag punching tools, the cutting geometry can be precisely adjusted to the properties of the cutting material. Not only are the cutting edges under less pressure, but this also significantly enhances the punching quality and performance of the tools.
Punching Tools Are the Heart of the Cutting Process

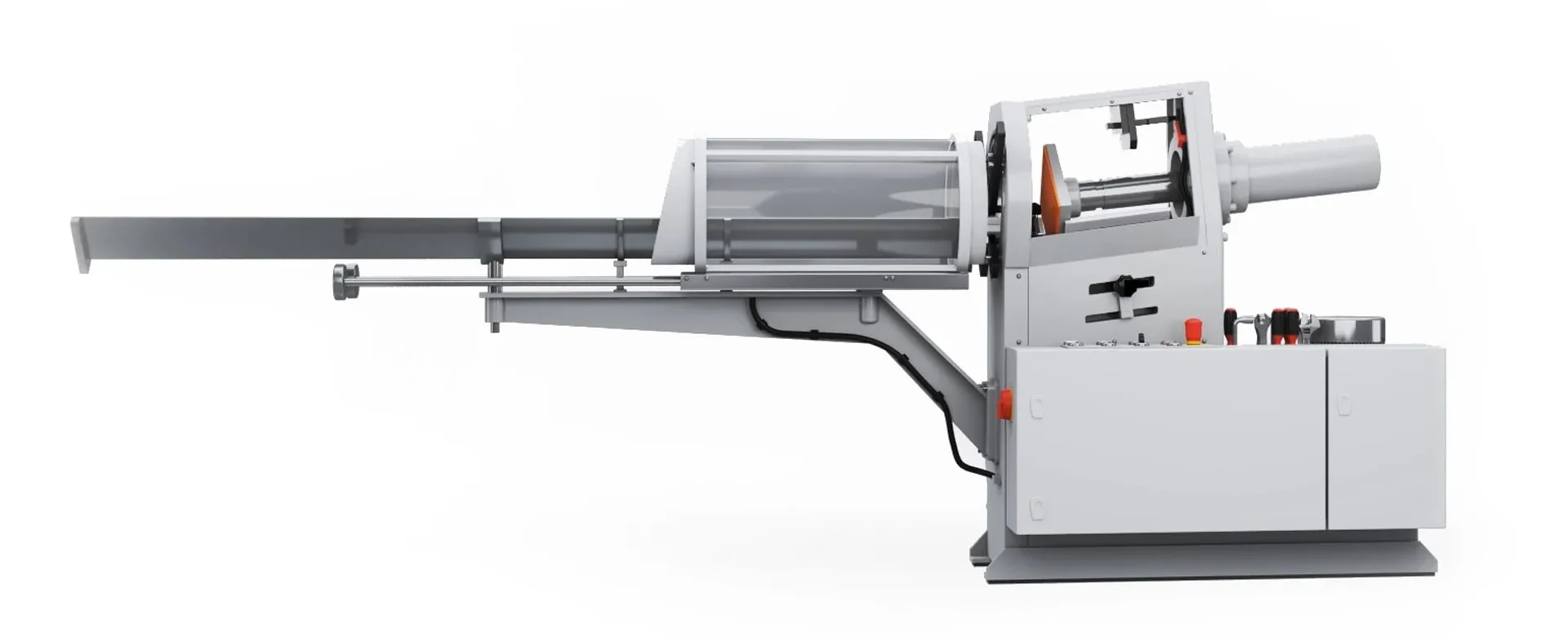

Even the most efficient punching machine is only as good as its punching tool. The latter determines the precision, optimal cut, dimensional accuracy, and performance of the tool as well as the production costs. Stamfag punching tools are suitable for all common ram-punch and counter-pressure machines.
